Phase 2 (2010): Launch of a small satellite in collaboration with National Institutes
Phase 3 (2011-2013): Development and launch of satellite constellation
軌道
500-700kmの太陽同期円軌道
傾斜角
82-98度
重量
100-130 kg
発生電力
50-100 W
ミッション重量
20-30 kg
打ち上げ
2009年
寿命
２～３年
Q1. How many satellites you plan for your system?
A1. 4 satellites.
Q2. Where the UV camera will be installed?
A2. On remote sensing satellite.
Q3. The satellites will be in the same orbital plane or in different?
A3. The system is under development and it will be determined on future stages of the system development.
Q4. What is the RTL-parameter?
A4. RTL parameter is the composition of three functions: epicentral R, time-dependent T, and L corresponding to the size of the earthquake source.
Q5. What kind of infrasonic measurements you intend to implement?
A5. The sensor is under development.
Kazakh and Russian scientists made "Radio Waves Earthquake Prognosis and Its Installation" joint invention be patented. It will allow to predict the quake in 25 days. President of Central Asian Informatiology Academy, Academician Secretary Moscow Aviation Institute Gennadiy Korenchuk communicated this to Kazinform. According to G. Korenchuk the Russian scientists set down to its elaboration in 1990-es with the support of American colleagues. Use of ?Alpha? Russian and "Omega" American radio navigation and "COSPAS-SARSAT" international space systems were proposed in the project. But the cessation of "Omega" activities in 1997 resulted in joint works suspended. Later Kazakh scientists joined the project. The topic is included in 2001-2005 Kazakh-Russian information development cooperation program in scientific and technical spheres. The methods and their high efficiency were proved by researches on the basis of Afghanistan and Turkey new earthquakes.
A Kazakhstan-Iranian satellite aimed chiefly at predicting earthquakes may soon be launched into the orbit. The institute of space research of Kazakhstan has made public this initiative. It already has been proven and confirmed that in seismically active regions seismic processes influencing the upper layers of the Earth atmosphere start a few hours before an intense earthquake occurs. A satellite traveling in a low altitude orbit might very well plot these processes. Scientific research work in this direction had been carried out in Kazakhstan during the days of the USSR. At that time, two international establishments took part in the program “Interspace” – a unique mathematical program that processed the data from such satellites and was saved. The interest of Iranian scientists in forecasting earthquakes dramatically increased one and half years ago, after the tragedy in Bam city. In December 2003 over 40 thousand Iranians were killed there during a major earthquake. A rather developed earthquake-monitoring network does function in the country, but there are no such space technologies in Iran.
Bagdat Suimenbayev, deputy-director, space researches scientific institute:
“The launching will surely be carried out from Baikonur cosmodrome, and of course, by a conversion rocket, because it is the cheapest. We plan to make a platform together with Russia, yet all the payload, all mathematical summaries and further processing and experimentation we will do ourselves. We are free to do so in these regards.”
It is noteworthy that interest in the problem is growing each year. Kazakhstani specialists together with the French space agency CNES have prepared the technical and economic aspects of the project. Such a satellite will cost 1.5-2 million US dollars.
ALMATY. June 7, 2006. KAZINFORM /Konstantin Borodinov/ Negotiations between Kazkosmos National company and representatives of French companies Alcatel Alenia Space and CNRS have started in Almaty today.At the meeting with journalists chairman of the board of Kazkosmos company Serik Turzhanov introduced the French delegation that will discuss opportunities of establishment of French-Kazakh scientific satellite and in perspective an entire constellation of analogous apparatuses.
Kazakhstan integrates into the world space community in the light of current Message of President Nursultan Nazarbayev to people of Kazakhstan Strategy of Kazakhstan’s entry into the 50 most competitive countries of the world, he stressed. Cooperation with France and Russia will give us new opportunities. For instance, we will be able to research earthquake precursors and obtain accurate forecasts with the help of the satellite.
In the course of today’s talks French specialists suggested Kazakhstani colleagues surveying creation and employment of French satellite Demeter in France. The sides debated also possible establishment of satellite industry of nanotechnologies, micro and small satellites on the basis of Baikonur. Upon completion of the negotiations contract of partnership and creation of satellite constellation is expected to be signed.
Negotiations between national company “Kazcosmos” and French “Alcatel Alenia Space” has started in Almty. During three days the specialists from two countries are to broach prospective creation of French-Kazakhstan satellite for scientific researches.
French guests invited their colleagues to visit their country and study experience on creation of French satellite “Demeter”.
On the results of French delegation’s trip to Almaty they expect to sign a partnership agreement.
Prime Minister Junichiro Koizumi left on the government plane from Haneda Airport on August 28 to visit the Republic of Kazakhstan and the Republic of Uzbekistan.
EGU2008-A-03003
Inchin, A.; Ismailov, M.; Lozbin, A.
Kazakhstan's Project of Creation of Scientific Space System for Research of Earthquake Precursors
Working title: - OMIR (Orbital Monitoring of Ionosphere Radiation)
The components of the space system are supposed to be created in cooperation with research and manufacturing companies of Russia (IZMIRAN, GEOSCAN, Institute
of the Earth Physics, etc.), France (Thales Alenia Space, CNRS), Canada (CRESS,
York University), the Ukraine (YUZHNOE, Institute of Technical Mechanics) and
Kazakhstan (Institutes of MES RK, PROGNOZ).
The heads of Kazakh and French space agencies discussed a range of issues on cooperation in the cosmic sphere, the process of preparation of intergovernmental agreement on cosmic exploration for peaceful purposes that is planned to be signed during the coming visit of the President of France to Kazakhstan.
Musabayev informed the French colleagues on the new National Space Agency of Kazakhstan, built two years ago, noting that the leadership of Kazakhstan pays special attention to the development of cosmic activity in the country.
The chairman of the Kazakh Agency complimented the high status of Kazakh-French cooperation. “The Presidents of our countries agreed on strategic cooperation in the space exploration and we must achieve set goals,” he said.
Musabayev informed that EADS Astrium French Company was selected as the strategic partner of Kazkosmos in implementation of two big cosmic projects on establishment of space-based system of remote sensing of the Earth of Kazakhstan and construction of the assembling-test bad on production of space vehicle. “We plan cooperation with Thales Alenia Space cosmic company of France as well,” said Musanbaev.
The heads of space agencies of Kazakhstan and France expressed confidence that specialists of Kazkosmos, CNES and all interested state bodies will prepare bilateral document that will define all conditions of Kazakh-French cooperation in the cosmic sphere and be signed within the visit of the French President in Kazakhstan.

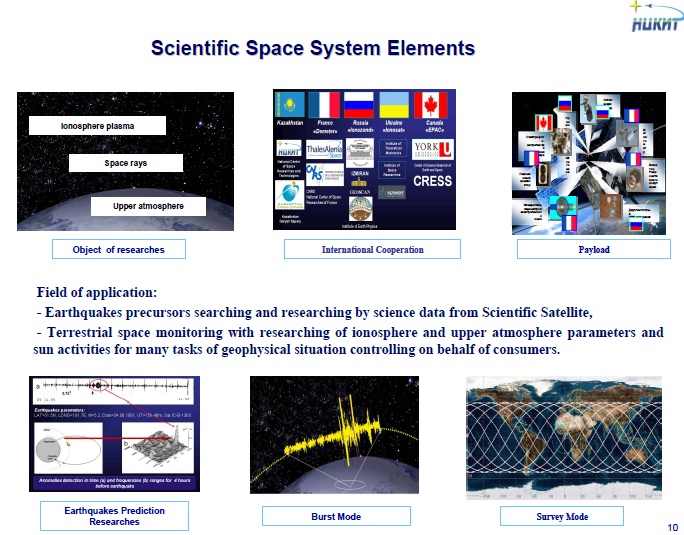

Key features of the Scientific Satellite
• Working title: OMIR (Orbital Monitoring of Ionosphere Radiation)
• Mission: study of the physical phenomena in the near Earth space that result from pre-seismic effects and human activities
• Satellite mass: bus + payload, - up to 150 kg
• Payload mass: - up to 35 kg
• Payload average energy consumption: - 30 – 40 W
• Orbit:
- Type: - circular
- Altitude: - 500-550 km
- Inclination: - 51-53°
• Design life: - no less than 5 years
Satellite Payload:
• Electric Field Instrument (EFI)
• Magnetic Field Instrument (MFI)
• Plasma Analyzer Instrument (IAP)
• VLF-LF Receiver-analyzer
• Optical camera to monitor an undulatory cloudiness in the atmosphere
• Earthquake Precursor Airglow Camera (EPAC)
• Neutral Particle Detector (NDP)
• TEC Instrument
• Radiation monitor
The components of the space system are supposed to be created in cooperation with research and manufacturingcompanies of Russia (IZMIRAN, GEOSCAN, Institute of the Earth Physics, etc.), France (Thales Alenia Space, CNRS), Canada (CRESS, York University), the Ukraine (YUZHNOE, Institute of Technical Mechanics)
and Kazakhstan (Institutes of MES RK, PROGNOZ).
According to KAZINFORM, the delegation of the National Space Agency (NCA) of the Republic of Kazakhstan headed by President KazKosmos Talgat Musabayev in Thailand is being held in the 16th session of the Space Agency Forum of the Asia-Pacific region (APRSAF-16) has held talks with a delegation from the Japan Aerospace Exploration Agency (JAXA).
KazKosmos JAXA and discussed a wide range of issues for cooperation. In particular, they talked about the prospects for the development of small satellites weighing from 200 to 500 kilograms and microsatellites to 10 kilograms, the provision of services on global navigation satellite systems. The parties also exchanged views on the development of space science, with the report to the Japanese counterparts by President NTSKIT Zhumabek Zhantaev.
At the conclusion of the talks chairman KazKosmos Talgat Musabayev and JAXA President Keiji Tachikava signed agreement between the National Space Agency of the Republic of Kazakhstan and Japan Aerospace Exploration Agency (JAXA) on cooperation in space activities for peaceful purposes.
As the head KazKosmos, this framework agreement will provide Kazakhstan and Japan, institutional and legal framework for full and effective cooperation in space sphere.
The active international cooperation NCA RK evidenced by the fact that during the past year and a half KazKosmos already signed five framework agreements on cooperation in space activities with Russia, India, Israel, France and Japan.
Inchin, A.; Lozbin, A.; Mailibayeva, L.; Shpadi, Yu.; Shpadi, M.
In the context of Scientific Space System creation project for earthquake precursor’s researches was developed software for the complex analysis of the satellite and ground waveform data. The system consists of two programs TRASSA-OMIR and SOS-OMIR. For the chosen seismic region and time interval the TRASSA-OMIR program allows to predict satellite orbital position (altitude, subsatellite point latitude and longitudes), and also other parameters for these point - L-shell, satellite light exposure, distance from the satellite to earthquake epicenter, geomagnetic field parameters, etc. As initial conditions for satellite orbit prediction we used classical elements and elements of TLE format (NORAD). The SOS-OMIR program is intended for complex waveform data (satellite and ground) processing and analysis in the chosen seismic regions with use of the modern techniques based on methods of the spectral analysis, filtration, statistical and correlation-regression analysis, etc. The special feature of the given system is orientation to processing of ground and satellite data for detecting of anomalies related to seismic events.
Projects to develop spacecraft and instruments for studying earthquake precursors are of immediate interest to the CIS countries. This work began in the Soviet period, and some significant developments were achieved by scientists from Russia, Ukraine and Kazakhstan. Russia is represented in these projects by the IZMIRAN and Tekhnologiya Geoscan. Recently, scientists from France who possess a satellite suitable for studying earthquake precursors joined this research.
Presently the French satellite is the only shared instrument available for the study of earthquake precursors. In future it will be replaced by Russian, Ukrainian and Kazakh satellites, which will be built under the respective national programmes.
Under the programme of Russian-Ukrainian cooperation in space exploration and use (2007-2011), a system of short-term earthquake forecasts and emergency monitoring system will be developed.
The Programme for Accelerated Industrial and Innovation Development of Kazakhstan until 2014 includes plans to conduct research and R&D work with a view to building a space system capable, inter alia, of studying earthquake precursors based on ionosphere parameters. This system is being developed by the National Centre of Space Engineering and Technology in partnership with the RAS Institute of Earth Magnetism, Ionosphere and Radiowaves Propagation (IZMIRAN) and Geoscan Tekhnologiya of Russia, the Yuzhnoye State Design Bureau of Ukraine and the Space Agency of France.
Multi-level system of monitoring and forecasting of space weather is being created in Kazakhstan. Near space is being monitored by measuring key
parameters of the ionosphere, upper atmosphere and solar activity
to address a wide range of tasks of controlling and forecasting
geophysical situation ("Space Weather"), as well as research
and the search for earthquake precursors.
Project of “Creation of the scientific-technological space system”
Objectiive: devellopment off technollogy on desiign and productiion off
paylload iindiiviiduall parts and spacecraffts, desiign, assemblly and testiing off spacecraffts (sellff-develloped subsystems).
Partiiciipants: JSC “NC “Kazakhstan Gharysh Sapary” and
JSC “Natiionall center off space research and technollogy”
Period of the project realliizatiion: 2012-2015
Expected resullts:
Scientiffic and technological satellite is to be launched, the resullts on development of the new technology design, spacecrafts assemblly and testing, scientific research of Earth ionosphere, flight heritage for the
technological payload (self-developed subsystem) are to be received.
While the White House and Congress are engaged in a tug-of-war over whether NASA should cooperate with China in space, two nations that inherited parts of the Soviet Union’s space program - Kazakhstan and Ukraine - have moved forward on engaging with the emerging superpower. They join other space powers - including Russia, Canada and Europe - that are already cooperating with China.
Kazcosmos Chairman Talgat Musabayev recently led a delegation to Beijing to meet with officials of the China National Space Administration. Kazcosmos PAO reports:
On the first day of the visit the delegation met with the China Industrial Corporation (CPC) "Great Wall", and discussed issues of cooperation. Members of the Kazakh delegation, composed of heads and specialists of Kazkosmos, met with the leadership of the Chinese Academy of Engineering (KTARN) and visited the booster assembly plant.
During the talks the head of Kazcosmos Talgat Musabayev and head of the China National Space Administration (KNKA) Tsyufa Chen noted the need to prepare an intergovernmental agreement on cooperation in the exploration and use of outer space for peaceful purposes.
"This framework agreement will form the basis of bilateral and mutually beneficial cooperation between Kazakhstan and China in space," said T. Musabayev.
According to the head Kazkosmos, China's space industry, which has reached today a large scale and considerable scientific and technological level, is of great interest for Kazakhstan in the light of its own space industry.
Last month, a Chinese delegation visited Kiev to review progress in implementing the 2011-15 space cooperation agreement that was signed last September. According to the State Space Agency of Ukraine:
The program included over 50 joint projects divided into 2 parts: primary and perspective projects. In particular, it was foreseen to develop joint space system for Earth observation, implementation of ionosphere satellite project for creation of the earthquake forecasting system, development and supply for Chinese partners of diverse rocketry equipment and instrumentation.
Space environment study at the Institute of Ionosphere (Kazakhstan): Instrumentation and Science
Gordienko Galina, Andreev Alexei, and Zhumabayev Beibit
These experimental data are used to study effects related with the earthquake
and thunderstorm events.
Research of Modern Movement of Earth Crust in the Territory of Almaty City
Kairat Sadykov, Zhumabek Zhantayev, Baurzhan Kurmanov, Assylkhan Bibossinov
Institut of Ionosphere, Kazakhstan
Study of Geodynamic Processes in Earthquake-prone Regions of Kazakhstan Using Satellite Technologies and Mathematical Modeling
Berik Iskakov, Zhumabek Zhantayev, Assylkhan Bibossinov, Nurlan Asankulov
Institut of Ionosphere, Kazakhstan
Under the contract, SSTL and the Ghalam team will jointly develop the "SSTL-50KZ" platform using heritage SSTL platform design and payload equipment including an SSTL EarthMapper payload designed for global commercial wide-area imaging, as well as flying a number of jointly-developed equipments and payloads, a novel imaging instrument, and a new on-board computer. The new platform will be designed to provide over 50W Orbit Average Power to a 50kg payload mission and it is intended that the platform and some of the new technologies will be used on future Kazak missions. Additionally, a cubesat carrying a payload for ionospheric research will be developed by SSTL, Ghalam LLP and the Surrey Space Centre at the University of Surrey.
Promoting innovation and technological upgrading in the space sector will contribute to the Republic of Kazakhstan, in particular, the development of scientific and technological base to build domestic models of scientific equipment scientific spacecraft, scientific, technological and educational purposes.
Space system for scientific and technological purposes (COP NTN), consists of a scientific-technological spacecraft (NTKA) and ground-based satellite control. This article discusses a project to create and use scientific block NTKA with instruments to measure parameters of the ionosphere.
Designed hardware and software package to forecast seismic processes of natural and man-made, based on data from satellite geodesy, analysis of variations of the stress state of the crust and lithosphere-ionosphere relationships, monitoring of the ionosphere, the magnetosphere, the electric field of the Earth can be used to search for earthquake precursors and prognosis of emergency situation in earthquake-prone regions of the country.
The working meeting of President of the Republic of Kazakhstan N.A. Nazarbayev with the leading scientists studying the issues related to the seismic hazard and the earthquake prediction was hold on November 7, 2005 in Almaty.
a) 自然災害と科学技術災害を防止する分野における相互協力についての政府間合意－CIS各国が参加（Minsk、1993年）
b) CIS各国の、地震研究と地震予知の分野での相互協力についての合意（モスクワ、1993年）
c) カザフスタン共和国政府とキルギス共和国、ウズベキスタン共和国との間の、地震研究と地震予知の分野での相互協力についての合意（Bishkek、1995年）
Monitoring of seismic hazards and earthquake prediction in Kazakstan
In order to ensure the safety of the population and to preserve its health, the government in 1989 set up a national system of seismological observation and earthquake prediction. Within this system there are today 11 scientific organizations, namely the Institute of Seismology, the Institute of Ionosphere, the Institute of Geophysical Research, the Seismological Expedition, Enterprise "Forecast", the Hydrogeological Expedition of the Ministry of Geology, the Faculty of Biophysics of Kazak University, the Complex Expedition, the special group of the Geodetic Committee, the Hydrometeorological Bureau, and the Institute of Seismo-Resistant Construction and Architecture.
